Hot Dipped Galvanized Chain Link Temporary Construction Fence Panel 14ft 50×50mm

Name: Hot Dipped Galvanized Chain Link Temporary Construction Fence Panel 14ft 5050mm
Brand: HBGB
Price: 1 USD

Quality Hot Dipped Galvanized Chain Link Temporary Construction Fence Panel 14ft 50×50mm for sale

Brand Name : HBGB

Model Number : GB-009

Certification : ISO 9001

Place of Origin : China

MOQ : 100sets

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 500 sets per day

Delivery Time : 15-25 days

Packaging Details : bulk or in bundle

Product name : Temporary Construction Fence Panel

Type : chain link wire mesh fence

Style : USA standard

Raw material : low carbon steel wire

Finishing : Hot dipped galvanized

Wire diameter : 2.0mm-4.0mm

Opening size : 2" x 2"

Frame : 1-3/8" diameter

Fence height : 6 ft

Fence length : 8ft, 10ft, 12ft

Features : Easily Assembled, Sustainable, ECO FRIENDLY, Anti-corrosion

Contact Now

50 X 50 Mm Galvanized Chain Link Portable Temporary Construction Fence Panel

Outdoor construction site Chain Link Temporary Fence:

Temporary fencing system is a combination of components, including fence panels, bases, clamps and other optional accessories, to be used in construction sites, events and private sites for protection and sectioning.

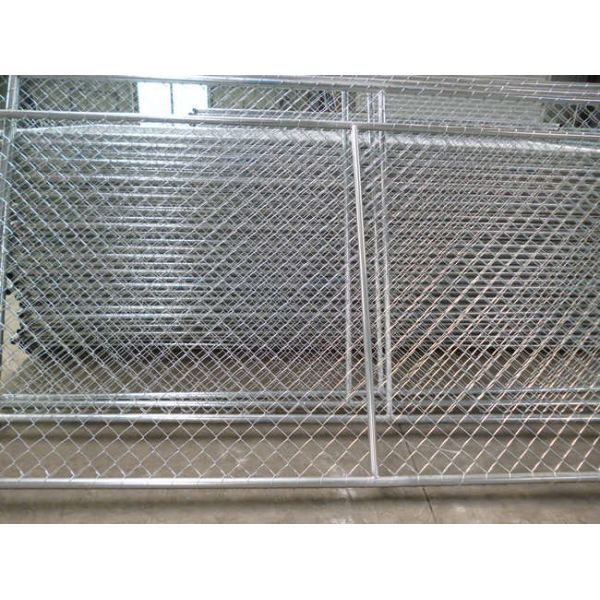

Pictures of fence in details:

Hot Dipped Galvanized Chain Link Temporary Construction Fence Panel 14ft 50×50mm

Specifications of Chain link Temporary Construction Fence Panel:

Chain Link Panel Temporary Fence Specification
Fence panel height	4ft, 6ft, 8ft
Fence panel width/length	10ft, 12ft, 14ft, etc
Wire diameter	2.7mm (11.5 gauge), 2.5mm, 3mm
Chain link mesh size	57x57mm (2-1/4"), 50x50mm, 60x60mm, etc.
Frame tube O.D	33.4mm (1-3/8"), 32mm, or 42mm (1-5/8") with 0.065" wall thickness
Vertical/Cross tube O.D	25mm or 32mm with 1.6mm (0.065") wall thickness

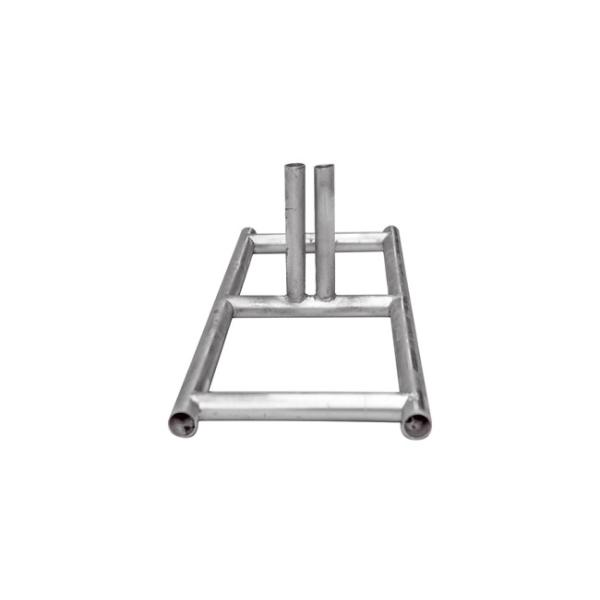

Fence base/stand	610x590mm (24'' x 23''), 762x460mm (30'' x 18''), etc
Accessory	Clamp, extra brace (diagonal brace)
Material	Hot dipped galvanized steel
Surface treatment	All joints are welded and sprayed with a galvanized paint to cover any exposed metal

Main feature of Chain link Temporary Construction Fence Panel:

1) Simple structure in linear type ,easy in installation and maintenance.
2) Renewable resource, could be used for several years.
3) All welding slag are cleared to insure fence smooth surface.
4) Whole panel (welded mesh panel and frame tube) will be silver spray painted after welding to protect all welding spots.
5) Customized fence shape or specification is also available.

Application:

Some of the most common uses for chain link panels include high-rise commercial construction sites, home developments, highway projects, store front renovations, and for any application where the installation of a post-driven fence is not possible or desired.
